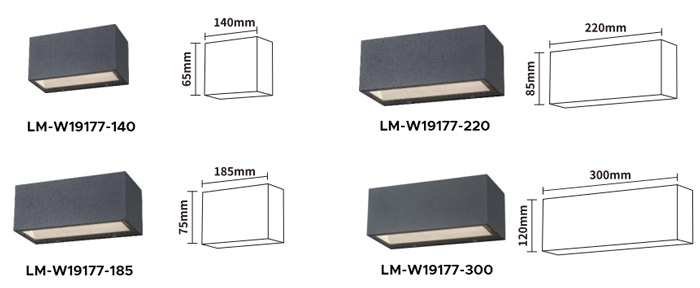

| Model | Wattage | Product Size | Light Source | Input Voltage | Light Effect | CRI (Ra) | Power Factor |
|---|---|---|---|---|---|---|---|
| LM-W19177-140 | 12W | 140×65×90mm | SMD | AC85–265V 50/60Hz | ≥90LM/W | >80 | ≥0.5 |
| LM-W19177-185 | 18W | 185×75×92mm | SMD | AC85–265V 50/60Hz | ≥90LM/W | >80 | ≥0.5 |
| LM-W19177-220 | 24W | 220×85×105mm | SMD | AC85–265V 50/60Hz | ≥90LM/W | >80 | ≥0.5 |
| LM-W19177-300 | 30W | 300×120×110mm | SMD | AC85–265V 50/60Hz | ≥90LM/W | >80 | ≥0.5 |

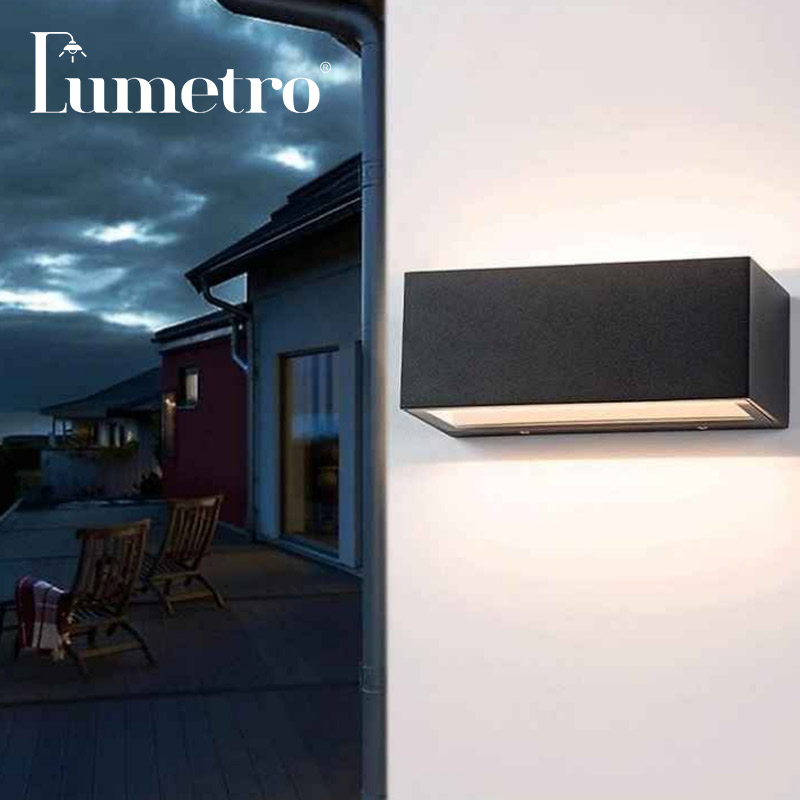

The LM-W19177 series features contemporary wall light designs that enhance both indoor and outdoor environments. Its clean geometric profile and smooth, uniform illumination offer a refined and inviting visual experience. With an IP54 weather-resistant rating, the series is built to withstand rain and harsh outdoor conditions confidently. Combining versatile aesthetics with functional reliability, it is a perfect lighting solution for modern residential and commercial architecture. Constructed from high-quality die-cast aluminum, each fixture ensures excellent durability and long-term performance.
